Quick Specifications
Working Height
12.2m 40ft
Platform Height
10.2m 33ft 6in
Working Outreach
6.1m 20ft
Safe Working Load
200kg 440lbs500lbs
Minimum Weight
1890kg 4170lbs
Full Specifications
Complete technical data for the TD120TN.

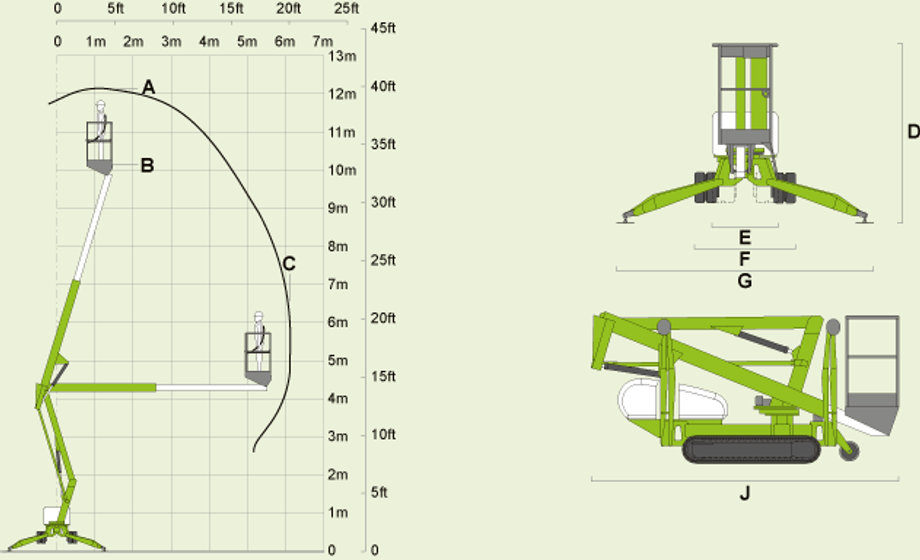

Working Height (A)
12.2m 40ft
Working Outreach (C)
6.1m 20ft
Platform Height (B)
10.2m 33ft 6in
Machine Width (F)
1.15m 3ft 9in
Machine Height (D)
1.95m 6ft 5in
Machine Length (J)
4m 13ft 1in
Working Width (G)
3.0m 9ft 10in
Retracted Width (E)
0.8m 2ft 7in
Travel Speed
1.6km/h 1mph
Gradeability
60%
Gradeability
31°
Minimum Weight
1890kg 4170lbs
Safe Working Load
200kg 440lbs 500lbs
Cage Width
1.1m 3ft 7in
Cage Depth
0.65m 2ft 2in
Power Options
Key Features
Engineered for performance and safety, these key features help you work smarter and more efficiently at height.
Common Applications
Versatile in use, these common applications show where this Niftylift performs best.
Downloads and Enquiries
Download key documents and contact our team for expert guidance on choosing the right platform.
Spec Sheet
PDF Download
Range Booklet
PDF Download
Call Us
+44 1908 223456
Ready to get a quote?
Speak to a member of our team about the TD120TN or any other TrackDrive machine.
