Quick Specifications
Working Height
21.3m (70ft)
Working Outreach
12.8m (42ft)
Safe Working Load
225kg (500lbs)
Minimum Weight
3950kg (8700lbs)
Full Specifications
Complete technical data for this machine.

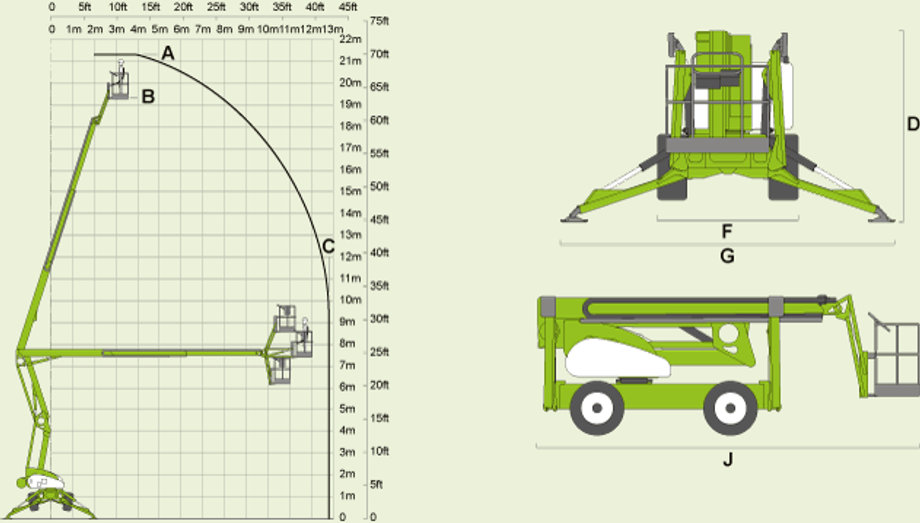

Working Height (A)
21.3m (70ft)
Working Outreach (C)
12.8m (42ft)
Machine Width (F)
2.05m (6ft 9in)
Machine Height (D)
2.25m (7ft 5in)
Machine Length (J)
6.15m (20ft 2in)
Working Width (G)
4.2m (13ft 9in)
Travel Speed
9km/h (5.6mph)
Gradeability
45%
Gradeability
24°
Turning Radius
3.5m (11ft 6in)
Minimum Weight
3950kg (8700lbs)
Safe Working Load
225kg (500lbs)
Fly Boom Arc
150°
Cage Rotation
100°
Cage Width
1.8m (4ft 11in)
Cage Depth
0.85m (2ft 9in)
Power Options
Key Features
Engineered for performance and safety, these key features help you work smarter and more efficiently at height.
